Best Dust Collection Blast Gates: Plastic vs Aluminum

For a small four-inch dust-collection branch, start with a simple gate whose connection dimensions you can verify and whose slide you can reach. The POWERTEC 70108 is the straightforward plastic option. The 70135/70135V aluminum design is worth comparing when you want a metal body and an open cleaning path. Neither choice fixes a collector that cannot deliver the airflow your machine needs.

PRODUCTS IN THIS GUIDE

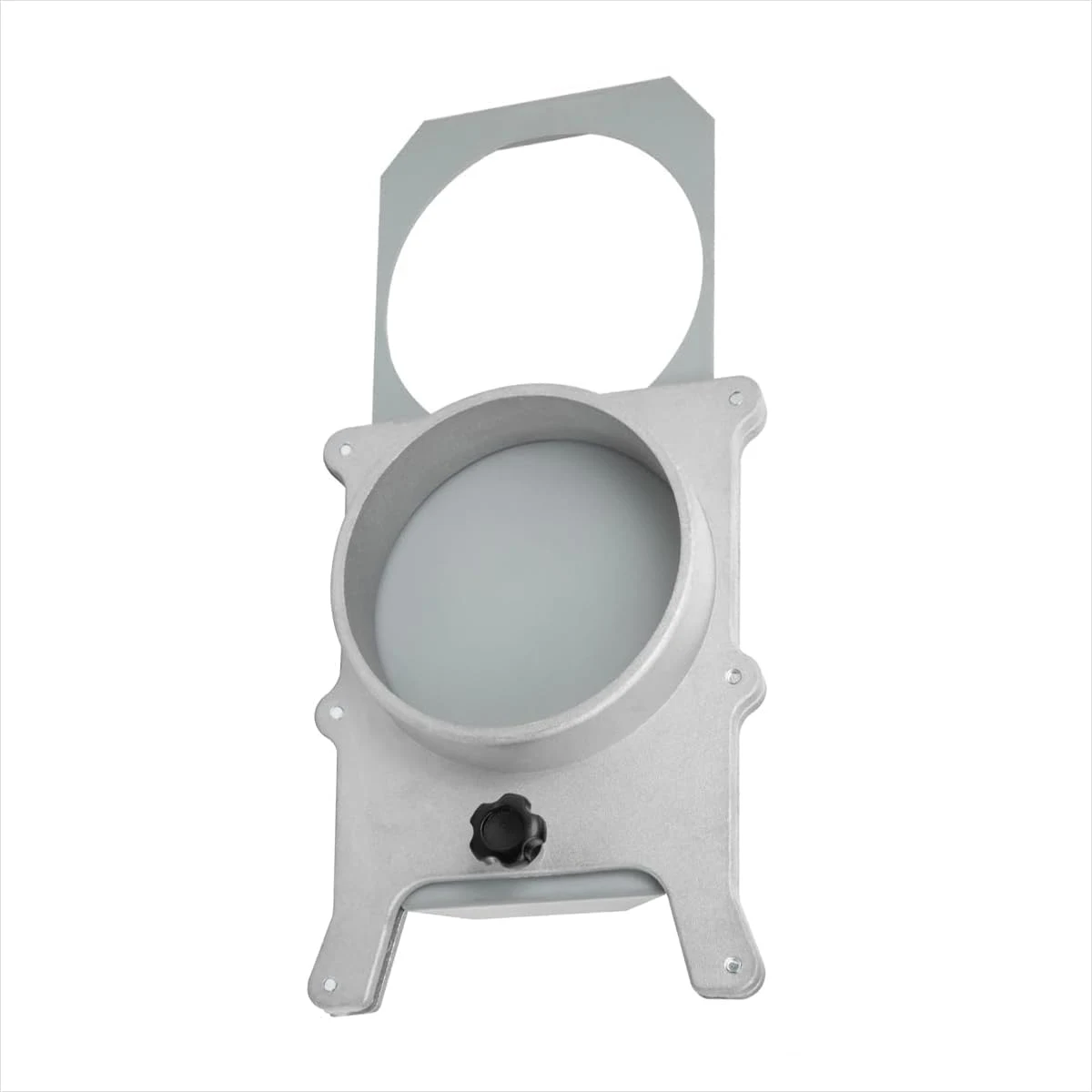

POWERTEC 70135V 4-Inch Aluminum Blast Gate

An aluminum-body alternative with a steel slide. Compare the cleaning path and support requirements; no measured leakage advantage is claimed.

Check price on Amazon ↗ for POWERTEC 70135V 4-Inch Aluminum Blast Gate (opens in a new tab)

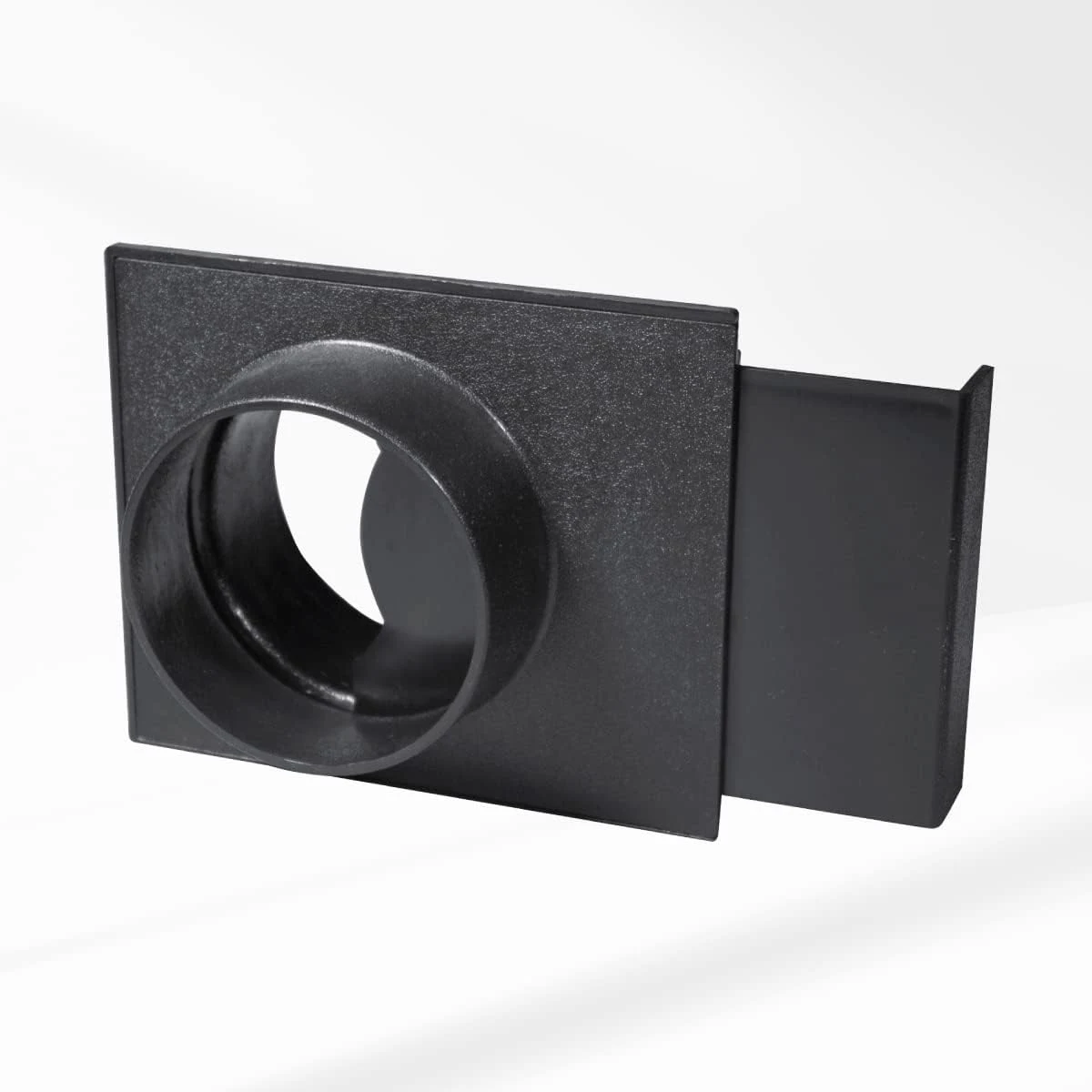

POWERTEC 70108 4-Inch Plastic Blast Gate

A simple ABS gate for isolating a measured four-inch dust-collection branch. Support the hose and verify actual connection dimensions.

Check price on Amazon ↗ for POWERTEC 70108 4-Inch Plastic Blast Gate (opens in a new tab)

Research comparison — October 27, 2026. We checked POWERTEC product information, its dust-management catalog, and identified Amazon listings. We have not measured leakage, pressure loss, opening force, or service life. The product photographs come from Amazon listings. As an Amazon Associate, we earn from qualifying purchases.

Our shortlist

Amazon identifies the metal listing as 70135V; POWERTEC's manufacturer page describes the 70135 family. Check the exact package designation and current dimensions rather than assuming every suffix or multipack is identical. Our recommendations concern the fitting format, not a tested ranking of airtightness.

POWERTEC 70108: the simple branch gate

The 70108 manufacturer listing identifies a nominal four-inch ABS gate for controlling a branch. It is the logical starting point when you have a modest layout and need to close unused machine connections without buying a complex switching system.

The advantage is simplicity. A gate installed near a machine makes the active branch obvious. It is also easy to understand and replace when you change the layout. The limitation is that a plastic housing should not become the structural support for a hanging length of hose. Support the duct and arrange the hose so normal movement does not twist the fitting.

Before choosing a multipack, draw the actual branches. One gate for each tool is not always the complete shopping list: wall supports, short hose connections, clamps, and suitable junctions may be required too. Buying six identical gates before measuring the ports can create six identical fit problems.

POWERTEC 70135V: a metal alternative with a cleaning advantage

The metal design combines an aluminum body with a steel slide. POWERTEC describes a self-clearing groove arrangement and a stop intended to keep the gate aligned. Treat those as design features, not a promise that packed dust can never obstruct movement.

This is the option we would compare for a frequently operated, accessible branch where a metal housing is desirable. Its weight is also a reason to add proper support rather than letting the machine's dust port carry the complete assembly.

A metal body does not automatically mean a lower pressure drop or zero leakage. Without a comparative test, those would be unsupported claims. Choose it because the construction and maintenance access suit the installation, then confirm performance in the complete system.

Nominal four-inch does not mean every end fits every other end

A fitting marketed as four-inch may be intended to enter flexible hose with a nominal four-inch inside diameter. Two rigid male ends generally need a suitable connector; matching labels alone do not create a joint. Record each connection as an inside or outside measurement, and note any taper.

Make a connection schedule before ordering:

This schedule is more useful than buying a random assortment of reducers. Our hose-adapter guide deals with smaller vacuum connections; avoid assuming those fittings suit a four-inch collector system.

Which extra fittings are worth buying?

Buy the connectors needed for your measured layout. A branch junction routes the system; a gate closes a branch; a reducer changes connection size; a quick-connect separates a joint. They do different jobs, even when a kit bundles them together.

Keep transitions deliberate. A very small reducer at a stationary machine can become the controlling restriction, regardless of the collector's advertised free-air CFM. A convenient quick-connect is useful only if the retained connection is appropriate for your required flow and will not pull apart in use.

POWERTEC's dust-management catalog distinguishes ordinary gates, threaded variants, mounting brackets, and other fittings. Use the exact part drawing or current product dimensions when choosing an accessory. We would not buy a threaded gate unless the matching hose and thread direction are confirmed.

Put the gate where you will actually use it

A gate behind a machine, under a low bench, or above a stack of lumber is easy to leave in the wrong position. Position controls within reach and label each branch. If the slide opens into an aisle, check that it cannot be caught by clothing or moving stock.

Allow room for the full slide travel and for cleaning. A gate wedged between two fixed surfaces may fit perfectly when closed but become impossible to open fully. Mark the open and closed positions so you can spot a partly closed gate before starting the tool.

Close unused branches according to your system design, but do not run the collector with every inlet closed unless its instructions permit that condition. Follow the collector's own operating requirements; the gate does not override them.

What to check after installation

First check mechanical fit: supported fittings, secure joints, an unobstructed slide, and no hose pulling on a weak machine port. Then confirm that the selected branch is fully open and the machine's hood is connected as intended.

If collection is poor, investigate the whole path. Blocked filters, a full bin, undersized hose, long flexible runs, and a restrictive hood can matter more than the gate material. Our dust collector sizing guide explains why operating airflow needs to be considered with resistance rather than a free-air number alone.

Questions buyers ask

Should I buy plastic or aluminum gates?

Choose around support, access, cleaning, and connection fit. The metal option is not a verified airflow upgrade in this comparison. Plastic can be sufficient for a properly supported simple branch.

Can a four-inch gate go on a shop vacuum?

Only as part of a deliberately designed connection arrangement. A small-hose vacuum and a four-inch collector system have different operating characteristics. Adding a large gate does not turn one into the other.

Will a gate stop all air leakage?

Do not assume that. We have not tested these gates for leakage, and joints elsewhere can leak too. Check the complete installation rather than treating a closed slide as an absolute seal.

Do I need a gate on a single-tool setup?

It may add little if there is no unused branch to isolate. A short, direct connection can be simpler. Plan from the actual system rather than buying a gate because it appears in a standard kit.

Buying decision: choose the 70108 ↗ for a straightforward supported branch, or compare the 70135V ↗ when its metal construction and cleaning arrangement justify the extra bulk. Verify the joint dimensions first.
